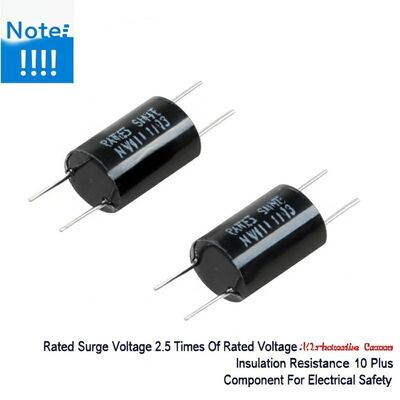

Rated Surge Voltage 2.5 Times Of Rated Voltage X2 Protective Capacitor Insulation Resistance 10 Plus Component For Electrical Safety

Grote Afbeelding : Rated Surge Voltage 2.5 Times Of Rated Voltage X2 Protective Capacitor Insulation Resistance 10 Plus Component For Electrical Safety

Productdetails:

Place of Origin:	CHINA
Merknaam:	SLFCF

Contact

Rated Surge Voltage 2.5 Times Of Rated Voltage X2 Protective Capacitor Insulation Resistance 10 Plus Component For Electrical Safety

beschrijving

Lead Wire Length:	15mm	Package Type:	Radial
Rated Surge Voltage:	2.5 Times Of Rated Voltage	Capacitance Tolerance:	±20%
Insulation Resistance:	≥ 10,000MΩ	Rated Voltage:	310VAC
Rated Frequency:	50/60Hz	Operating Temperature Range:	-40°C To +85°C
Markeren:	X2 safety capacitor with surge protection , X2 capacitor high insulation resistance , X2 protective capacitor for electrical safety

X2 Safety Capacitor - Rated Surge Voltage 2.5 Times Of Rated Voltage

Product Overview

The X2 Safety Capacitor is a highly reliable component designed for modern electrical and electronic systems requiring stringent safety standards. Engineered for superior performance in surge suppression, noise filtering, and transient voltage protection, this capacitor is essential for industrial, commercial, and residential applications.

Key Features

Product Name: X2 Safety Capacitor (also known as X2 Protective Capacitor)
Operating Temperature Range: -40°C to +85°C
Rated Frequency: 50/60Hz
Capacitance Range: 0.001uF - 4.7uF
Dielectric Strength: 1600VAC
Rated Surge Voltage: 2.5 Times Of Rated Voltage

Technical Specifications

Parameter	Specification
Product Name	X2 Safety Capacitor
Rated Voltage	310VAC
Dielectric Strength	1600VAC
Operating Temperature Range	-40°C to +85°C
Insulation Resistance	≥ 10,000MΩ
Lead Wire Length	15mm
Rated Surge Voltage	2.5 Times Of Rated Voltage
Rated Frequency	50/60Hz
Package Type	Radial
Size	P10 15 22.5 7.5MM

Performance Highlights

Superior Electrical Characteristics: Low dissipation factor (≤ 0.1%) ensures minimal energy loss and enhanced system efficiency. Capacitance tolerance of ±20% maintains consistent performance under varying electrical conditions.

Robust Construction: Complies with international safety standards (IEC standards for X2 class capacitors) with dielectric strength of 1600VAC providing additional safety margin against high-voltage stress.

Applications

The X2 Safety Capacitor is ideal for electromagnetic interference (EMI) suppression circuits across AC mains input in household appliances, industrial equipment, and consumer electronics. Suitable for outdoor power supplies, HVAC systems, lighting fixtures, surge protection circuits, and power factor correction systems.

Customization & Support

We offer customized X2 Safety Capacitors with through-hole mounting for easy installation. Comprehensive technical support includes datasheets, application notes, installation guides, and dedicated assistance from our technical team for troubleshooting and product recommendations.
